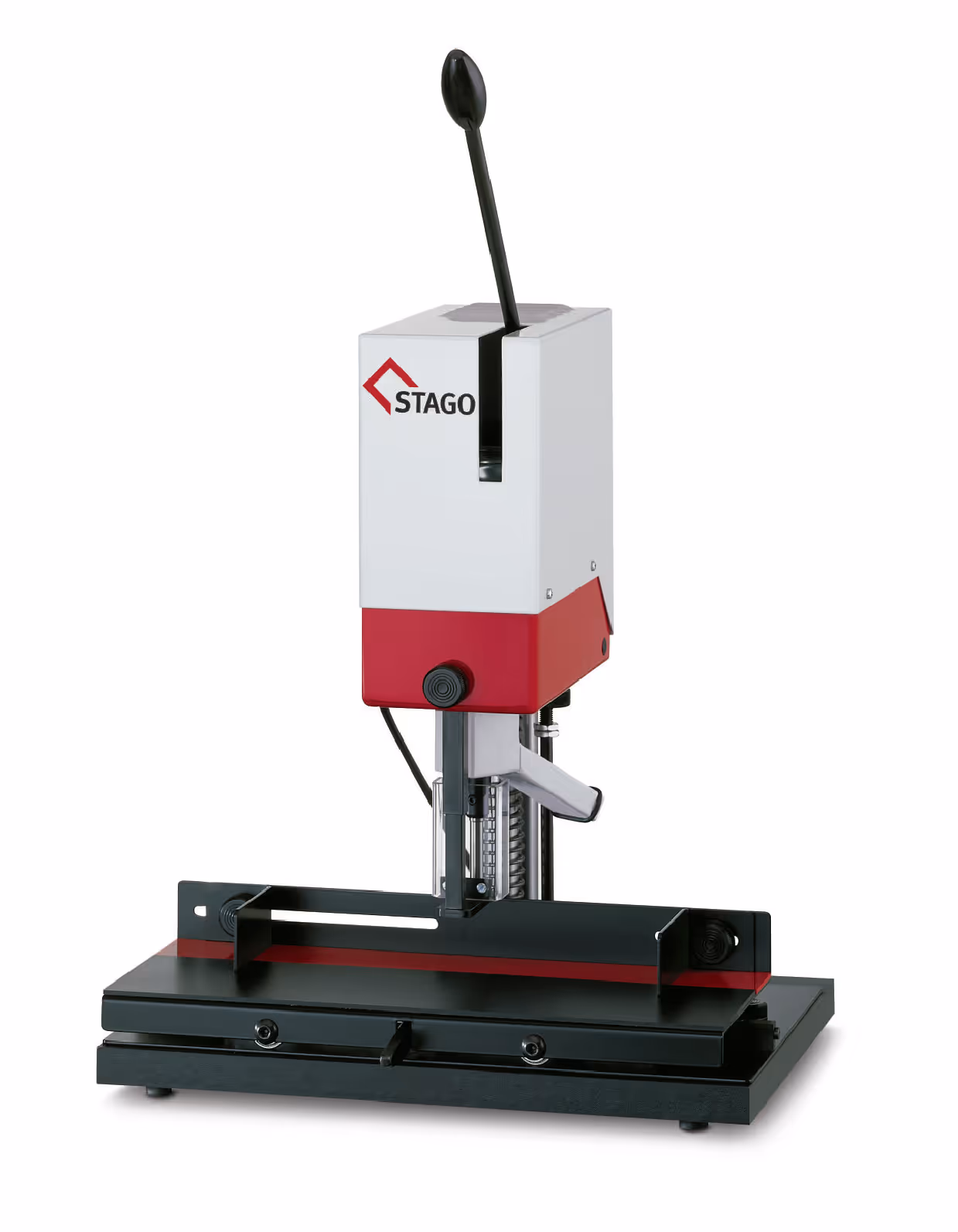

Stago PB1006 Single Head Paper Drilling Machine

STAGO Paper Drilling Machines are ideal to be arranged for your personal range of use.

All Products Back

Product Specification Brochure

Product Description

STAGO Paper Drilling Machines – Precision and Durability
Built for constant use, STAGO machines offer robust, ergonomic design and versatile performance. With adjustable stops for sizes up to DIN A3, they drill through paper, cardboard, textiles, leather, and plastics to depths of 60 mm. Various table options ensure flexibility for any workflow.

‍

Enquire Now

Description

The PB 1000 series machines are suitable for punching larger paper stacks in offices, law firms, schools, government agencies, copy shops, and small print shops. The ergonomic, simple, and robust design enables them to have a wide range of applications. Stacks of paper of up to 60 mm can be punched in a user-friendly way and without much effort. Three different table designs enable economical use for many different applications. The sliding table with programme shaft (SP) allows it to define up to 6 different hole spacing. Precise dual, double, US and also customised perforations are therefore not a problem. The chip removal is performed automatically into a collection bag.

Features

Single-spindle paper drilling machine

Single-spindle drilling machine, bench top hand lever with automatic disposal of paper trimmings. Drilling diameters from 2 to 8mm.

Sliding table with programme shaft for 6 adjustable hole centres
Sliding table with angle bar for 2 different hole centres.

Technical Specification

No. of drilling spindles 1

Drilling diameter 2 - 8 mm

Drilling depth max. 40 mm

Drilling speeds 2400 U/min

Table versions Fixed (F), sliding (S), programme shaft (SP)

Throat depth 48 mm

Table size 450 / 360 mm (F), 430 / 190 mm (S+SP)

Materials paper, cardboard, textiles, leather, plastics

Machine Dimensions 475 (F), 510 (S/SP) / 450 / 360 mm

Weight 15 kg (F), 21 kg (S/SP)

Power supply 230V / 50Hz, 115V / 60Hz*

‍
