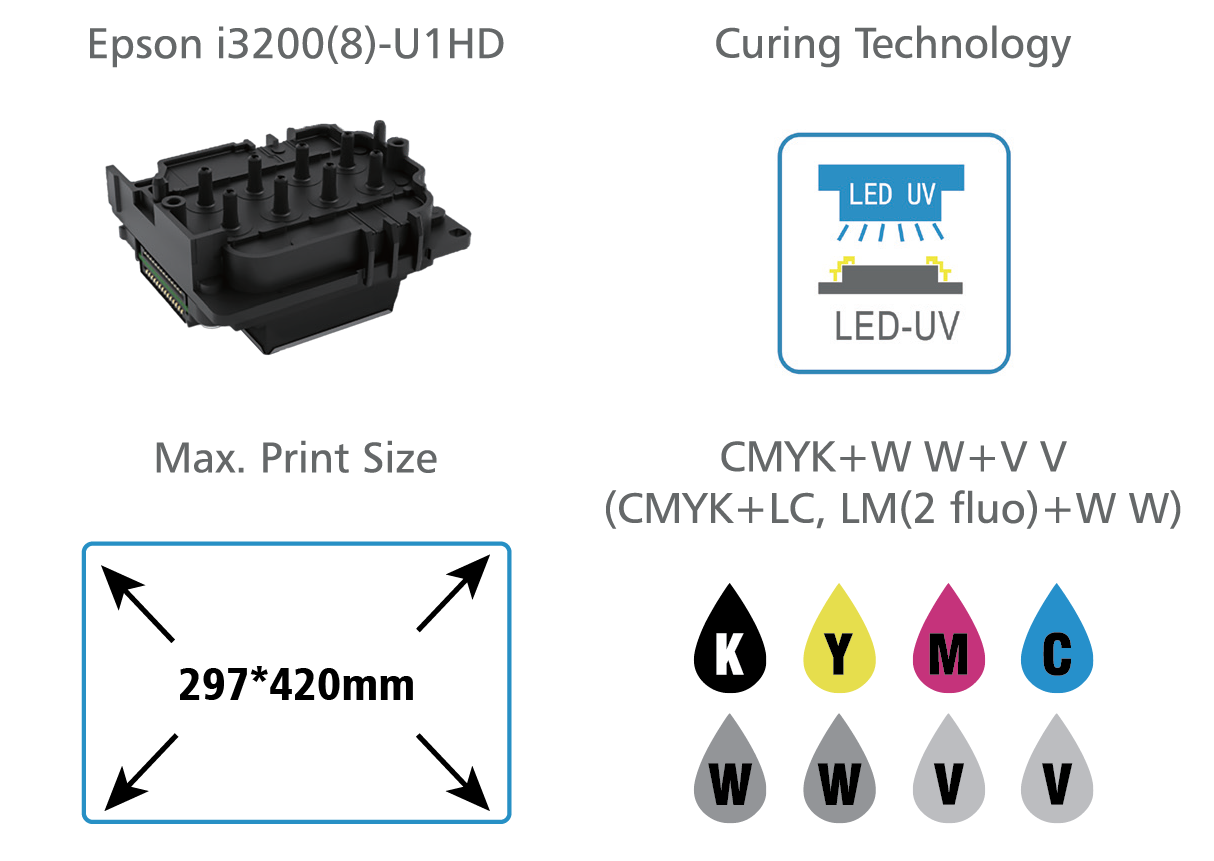

Core Hardware & Technology The NEOPRINT UV Printer is powered by the industry-proven Epson I3200-U1HD industrial printhead , delivering exceptional image quality, sharp detail, and smooth colour gradations. With high-density nozzles and resolutions up to 5760 × 1440 dpi , the printer produces vibrant, photo-quality output suitable for premium applications and customised products.
UV-LED Curing System Equipped with an energy-efficient air-cooled UV-LED curing system , the printer enables instant ink curing for faster production and reduced turnaround times. The UV-LED lamps offer:
Low power consumption Long operational lifespan Minimal maintenance requirements Safe printing on heat-sensitive materials such as leather, plastic films, and specialty substrates
Intelligent Height Adjustment & Vision Positioning The adjustable printhead clearance accommodates a wide range of materials with varying thicknesses. For enhanced productivity, the optional vision positioning system automatically detects and aligns graphics on irregularly shaped items, ensuring accurate print placement without manual setup.
Benefits include:
Faster job setup Reduced production errors Improved printing accuracy Lower operator training requirements
Professional Ink System The NEOPRINT UV Printer utilises a CMYK + White + Varnish ink configuration to deliver vibrant colours and premium finishing effects.
White Ink Applications White ink provides an opaque base layer when printing on transparent, coloured, or dark substrates, ensuring outstanding colour vibrancy and image quality.
Varnish Effects Varnish can be applied selectively to create:
Gloss finishes Spot varnish highlights Textured effects 3D embossed finishes This enables businesses to produce high-value products with enhanced visual and tactile appeal.
NEOPRINT features a professional-grade ink delivery system and advanced printing technology.
Multi-Function Printing Capability The NEOPRINT is designed as a versatile production platform, supporting multiple printing modes within a single compact system.
Flatbed Printing Mode Maximum Print Area: 400 × 300 × 90 mm (L × W × H)
Suitable for printing directly onto rigid materials, including:
Acrylic Glass Metal PVC Wood Cardboard Cylindrical & Bottle Printing Mode Maximum Print Area: Ø150 mm × 290 mm
Expand your product offering with direct printing on:
Water bottles Tumblers Drinkware Cosmetic containers This capability enables businesses to enter the growing personalised drinkware and promotional products market.
Roll-to-Roll Printing Mode With the optional roll-feed attachment, the NEOPRINT can print on flexible media including:
UV DTF film Stickers Leather Soft signage materials Labels This added versatility allows users to handle an even broader range of customisation and production applications using a single machine.
Wide variety of product applications from NEOPRINT.
