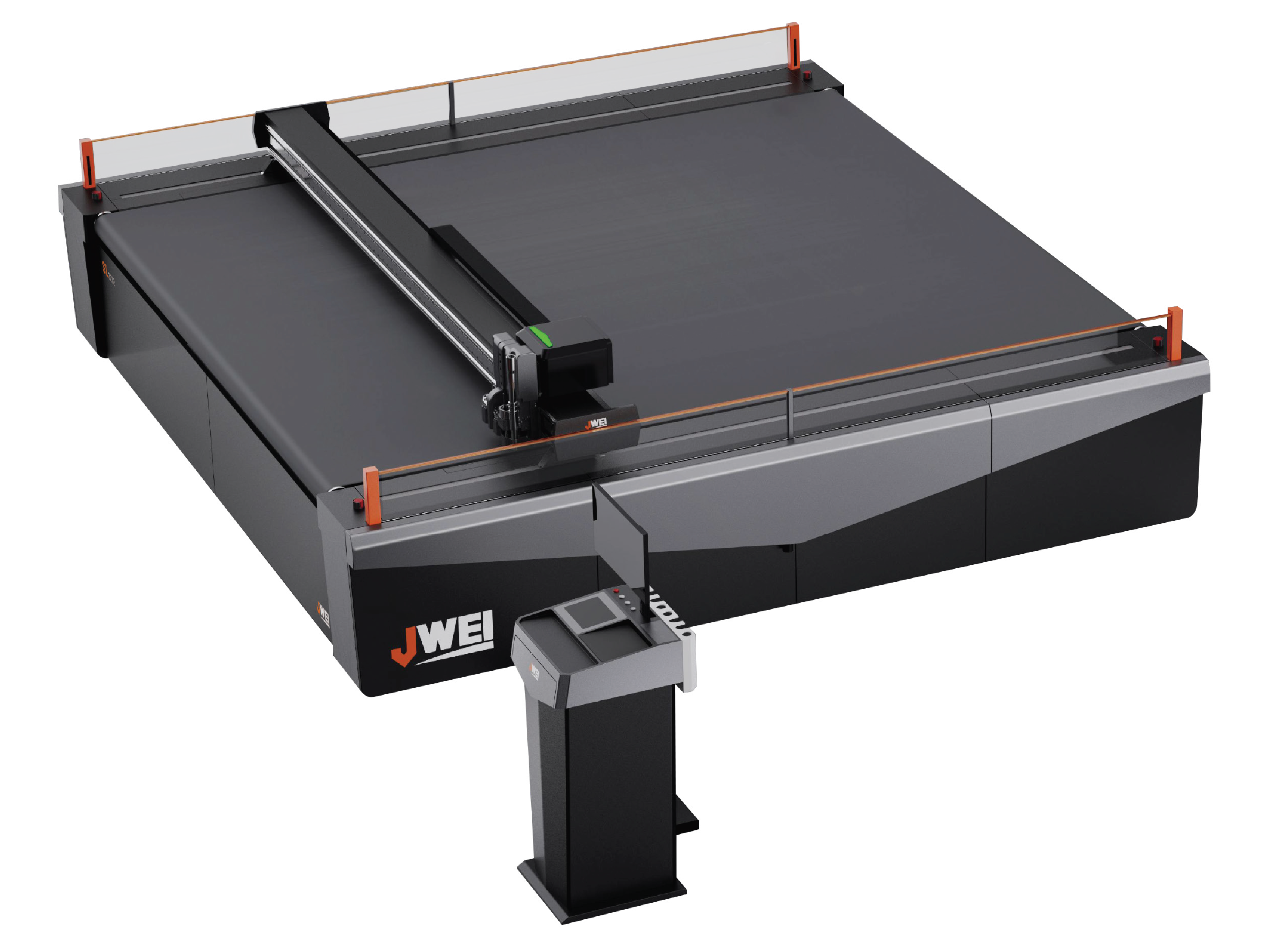

NeoCut - SL3232 Flatbed Cutter

High-Precision Soft Film Processing for Large Formats

All Products Back

Product Specification Brochure

Product Description

The NEOCUT SL3232 digital cutter is a new flagship model engineered to deliver both ultra-high speed and wide-format precision. Featuring a world-class control system and advanced software, it is built to meet the evolving production demands across multiple industries. With its enhanced cutting performance, the SL series enables greater accuracy and flexibility, allowing users to handle complex, diverse, and high-precision applications more efficiently.

‍

Enquire Now

Features

Magnetic Levitation Drive + Linear Motors

The SL3232 achieves an impressive running speed of 3 m/s, thanks to its magnetic levitation and linear motor drive system - ensuring optimal cutting speed without compromising precision.

‍

Advanced motion control algorithms

Powered by the cutting-edge M7 control board, the SL3232 ultilizes an industry-leading motion control algorithm that enables flawless cutting of 1mm micro-circles-delivering unmatched precision for the most demanding applications.

‍

Large-Format Flexible Film Precision Identification

Support integration with an AI-powered vision, enabling overhead projector automatic edge detection. Even without printed cut lines, the SL3232 can achieve highly accurate cutting by intelligently identifying material contours.

‍

Four Layers of Safety Protection

The SL3232 is quipped with four layers of safety mechanisms to ensure comprehensive operator protection: - Proximity slow-down protection - Lift-type safety guard - Infrared anti-collision sensors. - Emergency stop system. These features work together to deliver a safe and secure cutting environment under all operating conditions.

‍

Automatic Tool Change

Automatic Tool Change (ATC) and Automatic Bit Change (ABC) Eliminates the need for manual tool swaps by automatically changing between different cutting tools, significantly reducing downtime and improving workflow efficiency.

‍

Laser Tool Alignment

Ultilizers laser-based tool alignment to eliminate potential errors associated with traditional physical errors associated with traditional physical calibration methods-ensuring greater precision and reliability.

‍

Application

Ideally suited for high-speed cutting of large-format roll materials such as flexible films, car wraps, and lightbox graphics. The SL3232 is especially well-suited for businesses involved in outdoor advertising and the production of wide-format printed materials.

Aluminum Composite Panel

KT board

Magnetic

PVC foam board

Technical Specification

Multi-functional Tool Head

Multi-tool fixing holes, tool quick insert fixing, easy to replace cutting tools, plug and play, set cutting, creasing, drawing, router and other functions in one, optional ATC module

‍

Tools

Electric oscillating tool, drag knife, rotary tool, router tool module, plotting tools etc.

‍

Max. Operating speed

3000mm/s

‍

Max. Cutting Thickness

50mm *

‍

Repeat Precision

＜0.05mm

‍

Cutting Materials

ABS board, PVC board, space board, aluminum-plastic board, lamp sheet, back glue, PVC board, KT board, acrylic, magnetic sticker, self-adhesive etc.

‍

Material Fixation Mode

Vacuum absorption

‍

Machine Weight

4000kG

‍

Effective Cutting Size (WxL)

3250mm×3200mm

‍

Machine Size (WxLxH)

4550mm×4250mm×1400mm
