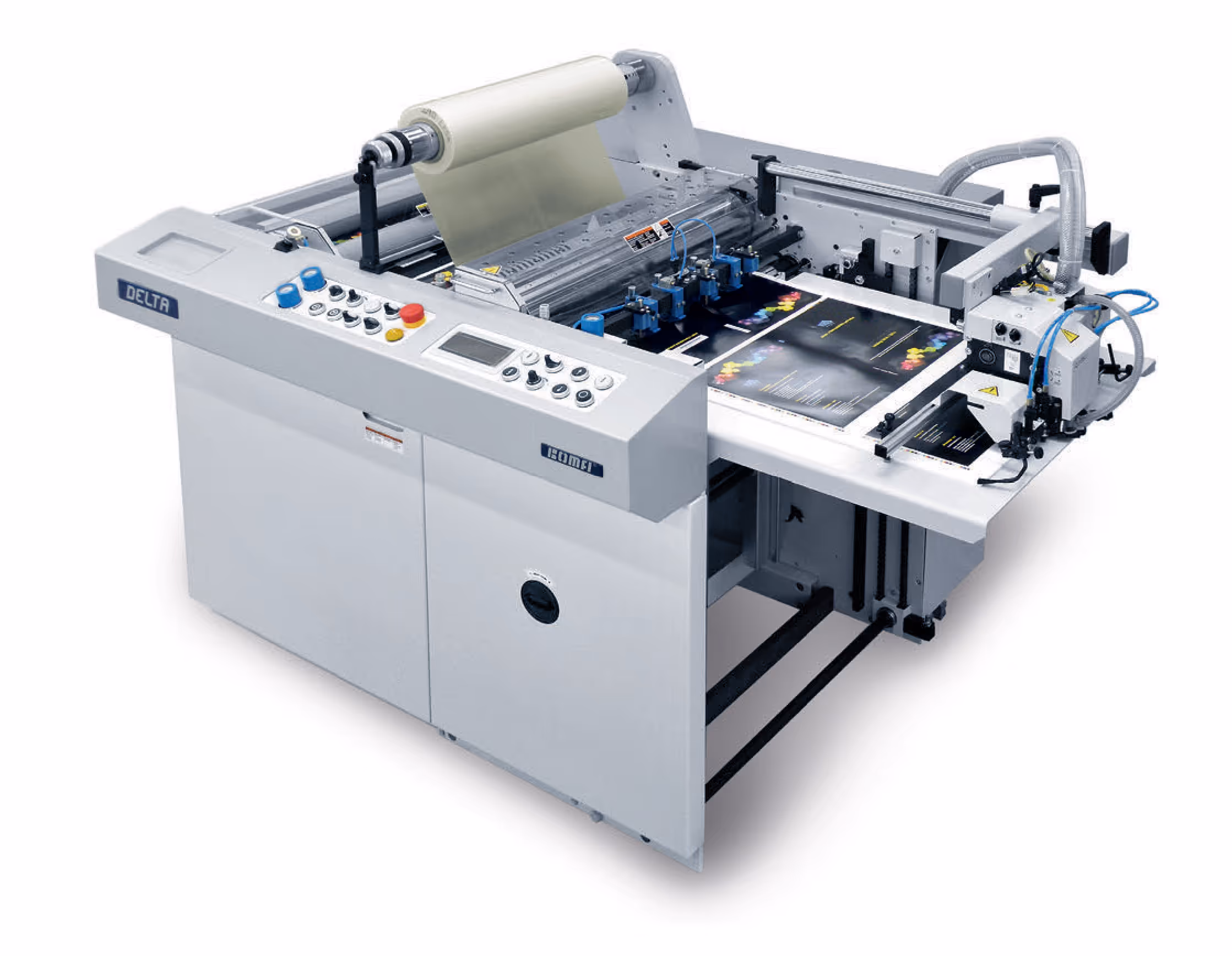

Komfi Delta 3052

A robust and reliable laminating solution designed for on-demand and commercial applications, delivering professional-quality results with efficiency and durability.

All Products Back

Product Specification Brochure

Product Description

The Delta 3052 laminating machine is a high-speed, heavy-duty solution for processing orders up to B2 sheet format at an impressive 35 m/min. Built for reliability and efficiency, it’s ideal for on-demand and commercial lamination jobs. Featuring automatic sheet feeding via a Komfi-designed feed head, a laminating cylinder heated by a 3-zone electro-resistance system, and automatic sheet separation with a built-in perforator, this machine ensures precision and productivity. Perfect for medium to high-volume applications, the Delta 3052 delivers professional-quality results with robust performance.

‍

Enquire Now

Features

Automatic feeder with fixed lifting table
Ensures smooth and consistent sheet feeding, maintaining accurate alignment and steady throughput for uninterrupted production.

‍

Single‑action Komfi feeding head
Provides reliable sheet separation and feeding with minimal operator input, reducing the risk of double‑feeds or j'ams.

‍

Automatic sheet overlap control
Maintains precise overlap between sheets for optimal lamination quality, improving efficiency and reducing waste.

‍

Laminating cylinder heated by 3‑zone electro‑resistance system
Delivers even, stable temperature across the cylinder, ensuring consistent adhesion and high‑quality lamination across all media types.

‍

Polyurethane pressure roller
Offers exceptional durability and uniform pressure distribution, resulting in a smooth finish and strong bond between film and substrate.

‍

Airshaft for film unwinding
Allows quick film loading and maintains stable film tension during lamination, ensuring wrinkle‑free, professional results.

‍

Combined decurling unit (bar and roller)
Automatically removes curl from laminated sheets by applying both mechanical and roller‑based adjustment, producing flat, ready‑to‑finish output.

‍

Electronically controlled snapping unit
Provides precise, accurate sheet separation after lamination, enhancing productivity and consistency.

‍

Pneumatically controlled snapping system
Ensures stable, controlled snapping pressure for clean and reliable separation, even at high production speeds.

‍

Fixed adjustable unloading table
Offers a stable platform for collecting laminated sheets, with adjustable positioning to accommodate different sheet sizes and operator preferences.

‍

Technical Description

Feeding section

Automatic sheet feeding using Komfi-designed feeding head for accurate single sheet feeding
System of guiding plates strengthens thin paper before lamination -> prevents from wrinkling
Sheet misfeed sensor -> protects against film sticking to the pressure roll

‍

Lamination section

- The side adjustable film unwinding airshaft with a mechanical brake for a smooth film unwind

- Film spread roller prevents folds

- The laminating cylinder is dry-heated (electro-resistance heating)

- Advanced three zones PID temperature regulation

- The sheet overlap is adjustable electronically even during machine run and easy to operate and precise solutionKey operation parameters are entered via a touch screen-> fast and comfortable

‍

Snapping and stacking section

Built-in both roller and bar for a perfect sheets decurling without surface damaging
Separation of sheets done by snapping roll with adjustable speed of rotation and speed of vertical movement; built-in perforator (vibrating knifes) and skewing wheel -> reliable and accurate solution.

Specifications

Max. Speed of Lamination‍

35 m/min

Monthly Production Capacity‍

Suitable for non-stop run

Sheet Dimensions

• Min: 20 x 20cm
• Max: 52 x 74cm

Paper Weight‍

115-600 g/m²

Thickness of Laminating Film‍

24-50 µm

Kind of laminating film‍

OPP, PET, Nylon

Time of Laminating Roll Warm Up (25-100ºc)‍

Approx. 3 min

Sheet overlap accuracy (at constant laminating speed)‍

±1mm

Machine Dimensions incl. table / stacker (L x W x H)‍

260cm x 123cm x 143cm / 343cm x 123cm x 143cm

‍
