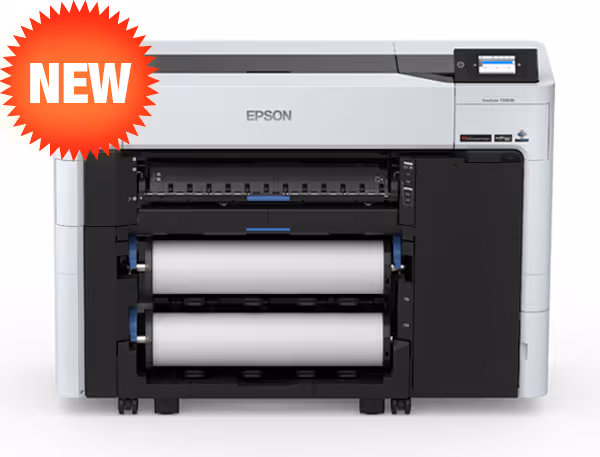

Epson SureColor T3760D

Designed for high-speed, high-volume production with enhanced colour gamut

All Products Back

Product Specification Brochure

Product Description

The SureColor T3760D combines an extremely compact footprint with flexible media handling and a high print speed. It is designed for companies who want to produce large-format colour drawings and posters in moderate to high volume. This model is particularly suited to construction, retail and print-4-pay applications. It uses 6 inks that come in large cost-effective cartridges with an additional Red to enhance the colour range. Integrated high-speed hardware-based Postscript^® enables fast and accurate image reproduction via drag-n-drop from the desktop or direct from a USB device.

Enquire Now

Features

T3760D

Incredible performance ‍

Crisp, detailed, colourful prints with industry-leading 2.64-inch PrecisionCore print head enables poster and POP production at over 27 m²/hr, CAD and technical drawings at up to 130 m²/hr.

‍‍

Innovative design ‍

Up to 20% smaller than equivalent machines with a flat top, lit platen window and front panel USB interface

‍‍

Unparalleled image quality ‍

UltraChrome XD3 Ink for fine lines and solid fills with vibrant imaging and enhanced colour gamut

‍

Wide application ‍

Print on glossy, bond, matte and specialty medias, even rigid poster board up to 1.5mm thick

‍

Adobe Level 3 Print Engine

‍Print PDFs up to 3x faster with more accurate processing and transparent layer handling

‍

Dual-roll productivity ‍

Print continuously or on multiple media types and/or sizes with auto-loading and exchange, alternatively use the second roll as a take-up reel for roll-to-roll production

‍

Easy setup and operation

‍Simple to install, large 4.3" LCD touch screen control panel, all-front loaded consumables, integrated pull-out drop-down media bin

‍‍

Versatile connectivity

‍High-Speed USB 3.0, Gigabit Ethernet and Wi-Fi^® connectivity (2.4 GHz and 5 GHz)

‍

Enhanced integration and workflow

‍Over 28 IT security features including IEEE 802.1x, NFC card support and optional 960GB SSD with encryption

‍‍

Maximum productivity ‍

Ships with Win & Mac drivers, print and accounting s/w, remote management and monitoring with Epson Cloud Solution PORT

‍

Benefits

Quality Results at High Speed

‍
The SC-T3760D incorporates Epson's latest 2.64" PrecisionCore print head with micro-fine nozzles that support resolutions up to 2400x1200 dpi. The head is factory fitted to ensure maximum print precision and durable performance without the cost or inconvenience of regular replacement³.

‍

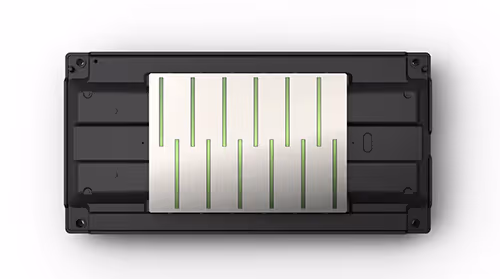

micro-fine nozzle

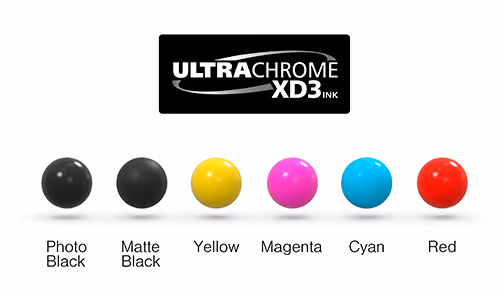

Epson UltraChrome ink features an aqueous all-pigment construction. The XD3 formulation includes an additional Red for vivid output with an enhanced gamut range. Images are extremely durable with colour is accurate and consistent.

‍

UltraChrome ink supports

‍

Economic to Run with Flexible Media Support

‍The SureColor T3760D supports sheet sizes up to A1 and roll media up to 24-inch (610mm) wide. It features a low running cost with reduced ink consumption and ultra-low power consumption. Ink cartridges can be ordered individually in a choice of 350ml or 700ml sizes to suit different operational and costs per print requirements.

‍

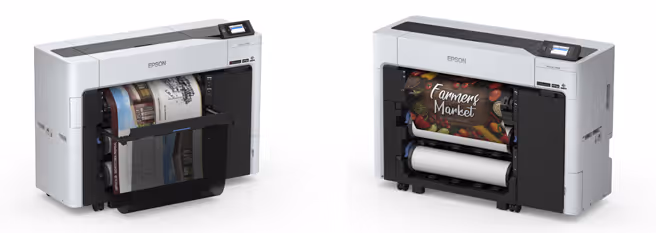

The SC-T3760D has been designed to accept a wide range of roll and single sheet media. It supports stock as light as 80gsm and has a special straight path for heavy media including board¹. It will print borderless and features a high-speed auto-cutter that will cut an A1 sheet in just 2 seconds. Roll media is loaded automatically once placed on the spindle.

‍

Easy to Install and Flexible to Operate

‍The SureColor T3760D incorporates high-speed networking with support for the latest addressing and security protocols. Designed to operate with standard Macintosh and Windows applications, it also support HP-GL/2 and RTL emulation for specialist applications. The printer features an ultra-compact design with all connections located on the right to enable operation against a wall or in a corner.

‍

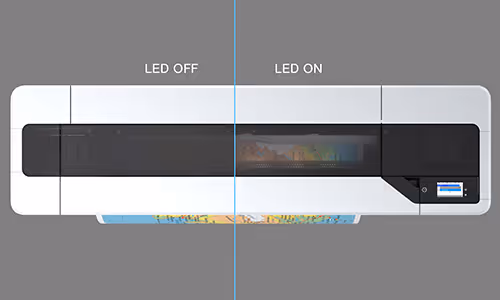

LED display

Technical Specifications

SIZE

‍Max Print Width

24 inch wide (610mm)

‍

‍PRINT TECHNOLOGY

‍Print Head

2.64" PrecisionCore TFP

Print Modes

Uni & Bi-directional

Nozzle Configuration

9600 nozzles (400 nozzles x 24 channels x 1 head)

Max Resolution

2400dpi x 1200dpi

Min Droplet Size

3.5pl

‍

‍INK SYSTEM

‍Family

Epson Ultrachrome® XD3

Type

All-Pigment Aqueous

Colours

C+M+Y+MK+PK+Red

Cartridge Size

350 ml or 700 ml ink cartridges
