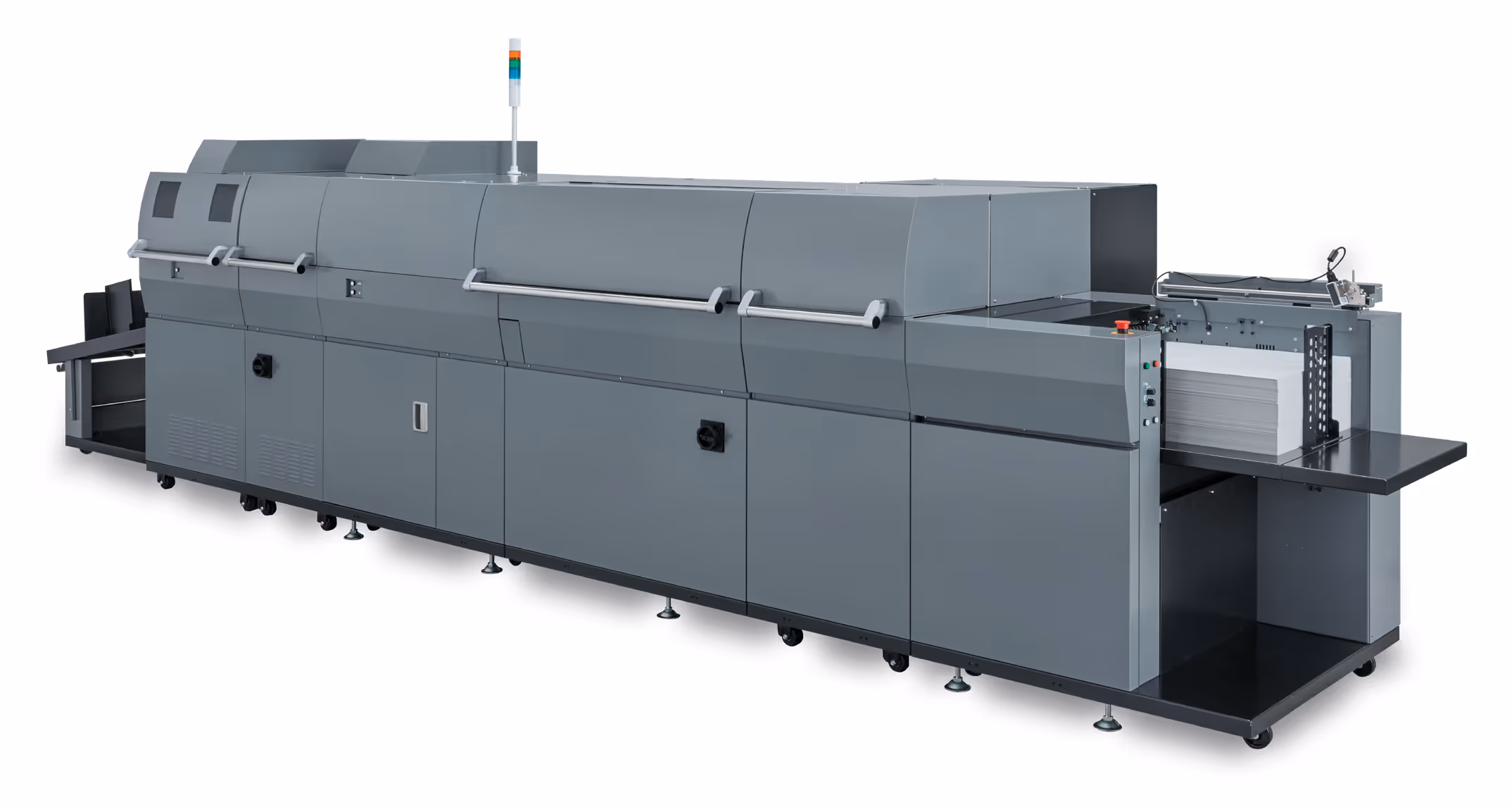

Model DDC-8000
Paper size Width 279 to 585 mmLength 279 to 1068mmStandard size B2 SEF, B3 SEF/B3 LEF, A2 SEF, A3 SEF/A3 LEF, DLT SEF/DLT LEF
Paper quality Art paper/coated paper 157～600g/㎡
Paper type Sheet (paper curling of 2 mm or more including thickness is strictly prohibited)
Paper thickness 0.14㎜～0.8㎜
Processing form Print: Line-type inkjetInk curing UV: UV lamp (metal halogen lamp)Printing correction: CCD camera
Resolution 600dpi×600dpi
Printing area 10 mm from each edgeWhen there are margins of paper widths of 558 mm or more, the margin on the reference side is set to 10 mm, and the margin on the anti-reference side is extended.
Printable data PDF: Only one type of the page size supports the multi size PDF. The page number of the multi page is 200 pages or less. If the PDF color setting is created in CMYK, it can be decomposed by CMYK components.If it is created in RGB, it can be supported in only grayscale. (color mode setting))TIFF: 600 dpi grayscale.
Print correction method Automatic print correction: Automatic correction by reading the registration mark (print length, print width, skew, scaling, twist)
Print accuracy Within ± 0.2 mm (when using the real-time mode)
Print thickness 10-40 μm: Can be set every 5 μm 40-80 μm: Can be set every 10 μm10 μm to 80 μm depending on the paper qualityThere are restrictions depending on the user usage environment and media conditions, and not all thicknesses are guaranteed. There is a limit to the processing speed depending on the print thickness. For details, refer to the item of processing speed.
Paper feeding method Belt suction method
Paper feeding reference One-side reference (non-operator's side)
Paper feed tray capacity 200㎜
Rating Three phase Y220 to 240/380 to 415 (*1) (*2) (*3)Three phase 240 (*1) (*4)Single phase 208 to 240 (*2) (*4)(*1) Skew correction section(*2) UV curing section(*3) For Europe(*4) For North America
Power consumption 3100 (*1) (*3)/4200 (*1) (*4)7200 (*2) (*3) (*4)(*1) Skew correction section(*2) UV curing section(*3) For Europe(*4) For North America
Dimensions When used 5426 x 1397 x 1980 mm
Weight 1330 kg (For North America)1328 kg (For Europe)
