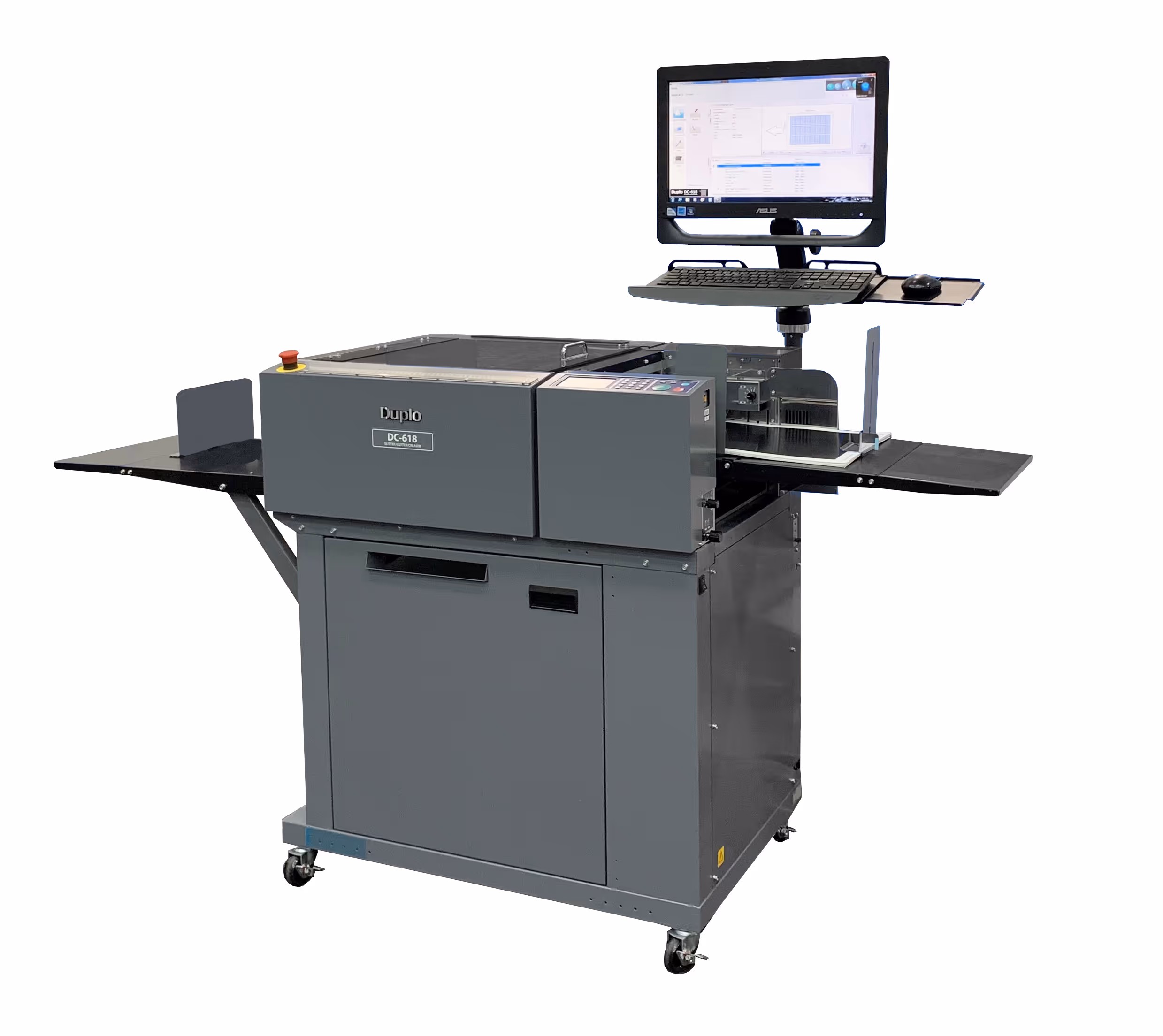

Duplo DC-618

A perfect option for the short run on-demand digital printer, the DC-618 Cutter/Creaser is a multifunction finishing system that offers quick set up and ease of use.

All Products Back

Product Specification Brochure

Product Description

The fully automated DC-618 Slitter/Cutter/Creaser is Duplo’s new compact yet powerful all-in-one finishing solution designed for today’s digital printer. With the ability to process up to 6 slits, 30 cuts and 20 creases in one pass, the DC-618 delivers full-bleed applications up to 23 sheets per minute without white borders and toner cracking for a clean finish. Bring your Finishing in-house with the DC-618!

Enquire Now

Features & Benefits

• Processes up to 10 sheets per minute

• Up to 6 slits, 25 cuts, and 20 creases in a single pass

• Standard PC Controller software for easy job setup and unlimited job storage

• Built-in CCD scanner reads barcodes and registration marks

• Standard perforation unit

Specifications

General Specifications

Dimensions (L x W xH):
1600mm x 620mm x 1050mm

Weight:
150kg

Power Supply/Consumption:
230V AC, 50Hz / 100W (0.7 Amp)

Input Paper Size Min:
210mm wide x 210 long

Input Paper Size Max:
320mm wide x 650mm* long (330.5 x 999mm - extended)

Finished Paper Size:
Width: 48mm, Length: 50mm (45mm - extended)

Paper Weight Min:
110gsm

Paper Weight Max:
400gsm

Paper Curl:
Within +/- 3mm

Paper Type:
Uncoated paper, coated paper, laminated paper

Capacity:
100mm

Type:
Top feed / belt suction

Slitters

Number:
6 x rotary slitting knives (2 x side trim, 4 x centre slitter) (programmable in 0.1mm increments)

Margin Slit:
3.2mm - 55mm from paper side edges

Gutter Deflector:
5mm x 15mm strips. Gutter slits wider than above will be delivered on to the exit tray. Max 2 deflectors per document

Tolerance:
Finishing size +/- 0.3mm (business card +/- 0.4mm)

Creaser

Number:
1 x creasing rule across paper direction

Maximum:
20 creases (programmable in 0.1mm increments)

Crease Depth Adjustment:
3 steps (from control panel)

Tolerance:
Finishing size +/- 0.3mm

‍
