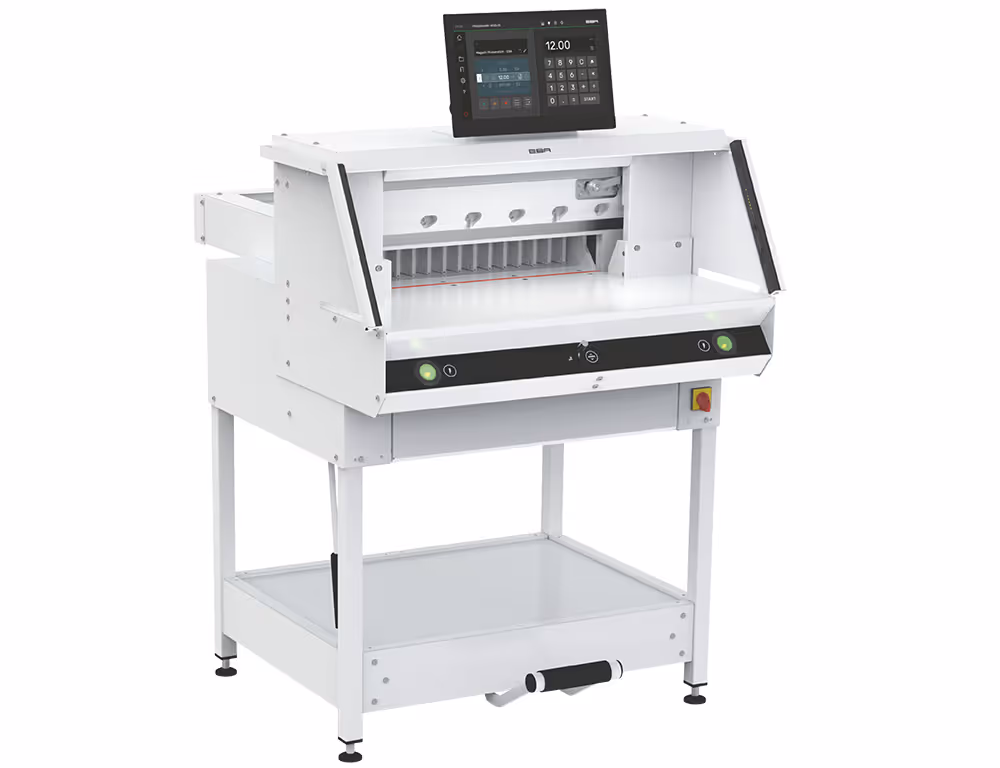

EBA THE 56

Introducing EBA the 56: Unleash your creativity with precision and versatility.

All Products Back

Product Specification Brochure

Product Description

The 56 Guillotine is the epitome of precision and efficiency in the realm of cutting tools. Designed with meticulous attention to detail and utilising the latest advancements in technology, this guillotine delivers unmatched performance for a wide range of cutting applications.

Next-generation programmable powered guillotine – for increased efficiency and productivity by working smarter. With IR light beam safety curtain and hydraulic clamp drive.

‍

Enquire Now

Specifications

Next-generation programmable powered guillotine – for increased efficiency and productivity by working smarter. With IR light beam safety curtain and hydraulic clamp drive.

‍

‍Cutting length (mm): 560

Cutting height (mm): 80 / 77*

Narrow cut (mm): <15 / 60*

Table depth (mm): 560

Power (V/Hz/~): 230/50/1

Fuse protection (A): 16

Dimensions H x W x D (mm): 1523 x 979 x 1211

Dimensions W (mm): with side tables** 1779

Dimensions H (mm): without touch screen 1334

Table height (mm): adjustable from 950–1000

Weight (kg): approx. 303

Weight (kg): with cladding panels** approx. 315

Weight (kg): with side tables** approx. 316

‍

THE 56

Display (pixels) 1366 x 768

Operation multi-touch

Connections LAN, USB

Clamping pressure programmable

Clamp pressure, min (daN) approx. 250

Clamp pressure, max. (daN) approx. 1000

Backgauge speed (cm/sec.) up to approx. 10

‍

Stand cladding panels and side tables for THE 56.

‍

Features

The 56 - Cut from the future!

Well-designed digital functions, intuitive controls, and easy to use: THE 56 makes guillotine work easier and more satisfying than ever – even on demanding projects.Enjoy optimised workflows and flawless precision.

Beautifully simple

15.6” diagonal size touchscreen – use it just like a tablet

The smart user interface ensures any new user instantly feel sat home. The display focuses the eye on the essentials –with intuitive touch and right when you need it – no more, no less.

Easy on the hands, comfortable on the eyes:

The 15.6” multi-touch display has a continuously adjustable tilt and adapts perfectly to light conditions and the ergonomic need sof the user. The smart user interface ensures any new user instantly feels at home. The display focuses the eye on the essentials – with intuitive touch and right when you need it – no more, no less.

‍

File manager Folder system with freely assignable tasks, selection of projects via USB, meaningful project names, and a time-saving search function.

Program mode Single step display with active/inactive settings, cutting steps are separately editable, freely editable text field for customer-specific information.

Adjustable defaults Operator-specific default clamping pressure and backgauge speed, automatic loading at switch-on.

Interactive assistance Assistance swapping blades via animated videos, integrated help/FAQ in program, updates via download to the USB stick.

Well-designed benefits

Precise cutting edges for every cut and every type of paper: standard when working with THE 56. Of course, there is sophisticated technology behind this, but we have gone even further. The clever construction with the cleverly placed controls also ensures pleasantly smooth workflows – so you effortlessly achieve the best cutting results.

‍

‍A. 15.6” multi-touch display

‍Functional graphical user interface for intuitive tablet-like work and clear main screen with intelligently split display. The tilt adjustable display can be ergonomically adapted to body height and lighting conditions.

B. PRECISION DRIVE

The manual fine adjustment of the back gauge ensures maximum precision – user-friendly via the ergonomic control element at the front of the machine.

C. EASY-TOUCH cut activating

Safe true two-hand operation: A cut can be executed conveniently and safely by means of the EASYTOUCH blade activating buttons with Integrated optical signals indicating the operational status.

D. Mechanical foot clamp

Ergonomic foot pedal for independent mechanical pre-clamping or as a mechanical cutting line indicator.

‍
